Intialize

%matplotlib inline
import matplotlib
import matplotlib.pyplot as plt
import numpy as np
from classy_sz import Class as Class_sz

cosmo_params = {
'omega_b': 0.02242,
'omega_cdm':  0.11933,
'H0': 67.66, # use H0 because this is what is used by the emulators and to avoid any ambiguity when comparing with camb.
'tau_reio': 0.0561,
'ln10^{10}A_s': 3.047,
'n_s': 0.9665
}

Compute H(z)

%%time
classy_sz = Class_sz()
classy_sz.set(cosmo_params)
classy_sz.set({
'output':' ',
'skip_hubble':0,
})

CPU times: user 304 μs, sys: 1.11 ms, total: 1.41 ms
Wall time: 1.64 ms

True

%%time
classy_sz.compute_class_szfast()

CPU times: user 10.3 ms, sys: 16.5 ms, total: 26.9 ms
Wall time: 32.8 ms

classy_sz.get_H(0.)

np.float64(0.00033359796437495265)

classy_sz.Hubble(1.)

np.float64(0.0004023684284735257)

classy_sz.get_hubble_at_z(1,params_values_dict = cosmo_params)

array(0.00040237)

Convert to usual units

conv_fac = 299792.458 # speed of light
print(classy_sz.Hubble(0.)*conv_fac)
print(classy_sz.get_hubble_at_z(0,params_values_dict = cosmo_params)*conv_fac)

67.66687000949837
67.66687000949837

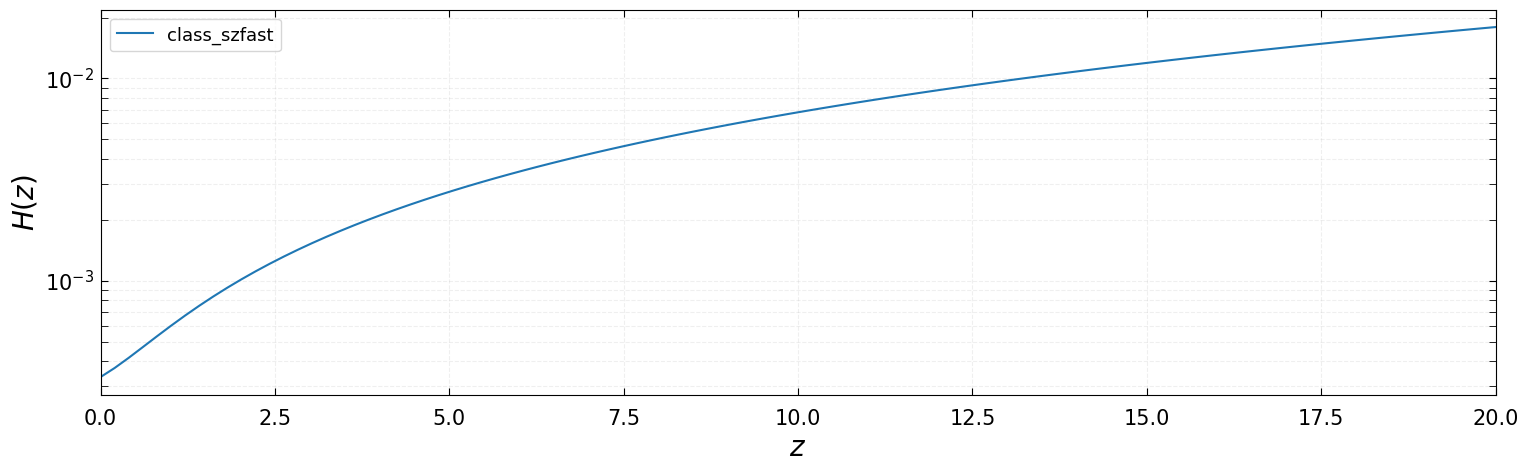

Plot H(z)

label_size = 15
title_size = 20
legend_size = 13
handle_length = 1.5
fig, (ax1) = plt.subplots(1,1,figsize=(18,5))

ax = ax1
ax.tick_params(axis = 'x',which='both',length=5,direction='in', pad=10)
ax.tick_params(axis = 'y',which='both',length=5,direction='in', pad=5)
ax.xaxis.set_ticks_position('both')
ax.yaxis.set_ticks_position('both')
plt.setp(ax.get_yticklabels(), rotation='horizontal', fontsize=label_size)
plt.setp(ax.get_xticklabels(), fontsize=label_size)
ax.grid( visible=True, which="both", alpha=0.2, linestyle='--')


z = np.linspace(0.,20,100)

ax.plot(z,classy_sz.get_H(z),ls='-',label='class_szfast')






ax.set_ylabel(r"$H(z)$",size=title_size)
ax.set_xlabel(r"$z$",size=title_size)
ax.set_xscale('linear')
ax.set_yscale('log')
ax.set_xlim(0,20)
ax.legend(fontsize=legend_size)

<matplotlib.legend.Legend at 0x146b8e000>

Time computations of H(z)

%timeit -n 40  classy_sz.compute_class_szfast()

31.4 ms ± 4.76 ms per loop (mean ± std. dev. of 7 runs, 40 loops each)

z = np.linspace(0.,20,1000)
%timeit -n 40  classy_sz.get_H(z)

8.61 ms ± 267 µs per loop (mean ± std. dev. of 7 runs, 40 loops each)

classy_sz.get_H(z)[0]*classy_sz.h()

0.00022571238269609295

z = np.linspace(0.,20,1000)
%timeit -n 40  classy_sz.Hubble(z)

6.92 ms ± 114 µs per loop (mean ± std. dev. of 7 runs, 40 loops each)

classy_sz.Hubble(z)[0]

0.00022571238269609295

# let's time it
z = np.linspace(0.,20,1000)
%timeit -n 40  classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)

18.8 ms ± 6.96 ms per loop (mean ± std. dev. of 7 runs, 40 loops each)

classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)[0]

0.00022571238269609295

Here we can now update cosmological parameters and recompute.

A strategy can be to initialize classy_sz and then recompute as here.

cosmo_params.update({'H0':72.})

classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)[0]

0.00024019108300278296

%timeit -n 40  classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)[0]

15.6 ms ± 3.89 ms per loop (mean ± std. dev. of 7 runs, 40 loops each)

Comparison without emulators

from classy_sz import Class as Class_sz
import numpy as np

cosmo_params = {
'omega_b': 0.02242,
'omega_cdm':  0.11933,
'H0': 67.66, # use H0 because this is what is used by the emulators and to avoid any ambiguity when comparing with camb.
'tau_reio': 0.0561,
'ln10^{10}A_s': 3.047,
'n_s': 0.9665,

'N_ur' :0.00441, # this is the default value in class v3 to get Neff = 3.044
'N_ncdm':  1,
'm_ncdm': 0.02,
'deg_ncdm': 3

}

%%time
classy_sz = Class_sz()
classy_sz.set(cosmo_params)
classy_sz.set({
'output':' ',
'skip_background_and_thermo':0,
})
classy_sz.compute()

CPU times: user 58 ms, sys: 5.67 ms, total: 63.6 ms
Wall time: 70.8 ms

classy_sz.Hubble(1.)

0.00040234621947652185

z = np.linspace(0.,20,1000)
%timeit -n 40  classy_sz.Hubble(z)

461 µs ± 134 µs per loop (mean ± std. dev. of 7 runs, 40 loops each)

classy_sz.Hubble(z)[0]

0.00022568946681106967

Compute with Jax

from classy_sz import Class as Class_sz
import jax.numpy as jnp

cosmo_params = {
'omega_b': 0.02242,
'omega_cdm':  0.11933,
'H0': 67.66, # use H0 because this is what is used by the emulators and to avoid any ambiguity when comparing with camb.
'tau_reio': 0.0561,
'ln10^{10}A_s': 3.047,
'n_s': 0.9665

}

%%time
classy_sz = Class_sz()
classy_sz.set(cosmo_params)
classy_sz.set({
'output':' ',
'jax' : 1,
})

CPU times: user 1.45 ms, sys: 3.3 ms, total: 4.75 ms
Wall time: 4.99 ms

True

%%time
classy_sz.compute_class_szfast()

CPU times: user 444 ms, sys: 47.4 ms, total: 491 ms
Wall time: 495 ms

z = 1.
classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)

Array(0.00040237, dtype=float64)

cosmo_params.update({'H0':72.})
"%.25f"%classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)

'0.0004106620973760160566400'

cosmo_params.update({'H0':70.})
"%.25f"%classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)

'0.0004067974877159367843964'

"%.25f"%classy_sz.Hubble(1.)[0]

'0.0004067974877159367843964'

z = jnp.linspace(1.,20,1000)
"%.25f"%classy_sz.Hubble(z)[0]

'0.0004067974877159367843964'

cosmo_params.update({'H0':67.})
z = jnp.linspace(1.,20,1000)
"%.25f"%classy_sz.Hubble(z)[0]

'0.0004067974877159367843964'

Compatibility

import jax

z = jnp.linspace(1., 20, 1000)
hubble_values = classy_sz.Hubble(z)

# Check if it's a JAX array
is_jax_array = isinstance(hubble_values, jnp.ndarray)

# Additional check: apply a JAX function to see if it supports JAX transformations
try:
    jitted_hubble = jax.jit(classy_sz.Hubble)(z)
    supports_jit = True
except Exception as e:
    supports_jit = False
    print("Error with jax.jit:", e)

print("Is Hubble(z) a JAX array?", is_jax_array)
print("Does Hubble(z) support JAX jit?", supports_jit)

Is Hubble(z) a JAX array? True
Does Hubble(z) support JAX jit? True

hubble_values = classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)
is_jax_array = isinstance(hubble_values, jnp.ndarray)
print("Is get_hubble_at_z a JAX array?", is_jax_array)

Is get_hubble_at_z a JAX array? True

Gradients

1 dimension

At one redshift

z = 1.
def Hubble(H0):
    cosmo_params.update({'H0':H0})
    hz = classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)
    return hz

Hubble(72)

Array(0.00041066, dtype=float64)

from jax import grad
# Get the derivative of f with respect to p
dHubble = grad(Hubble)

dHubble(76.)

Array(2.02039159e-06, dtype=float64, weak_type=True)

dHubble(76.)

Array(2.02039159e-06, dtype=float64, weak_type=True)

import jax
jax.__version__

'0.4.38'

import numpy as np
np.__version__

'2.0.2'

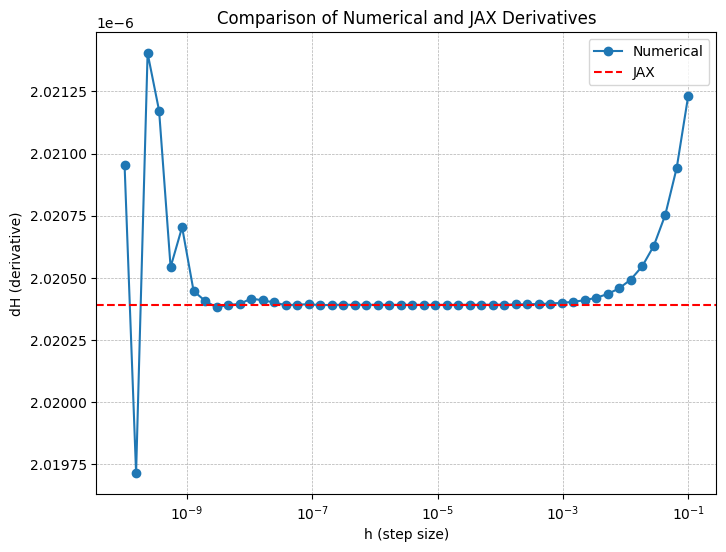

Comparison with numerical derivative

h = 1e-6
(Hubble(76.+h)-Hubble(76))/h

Array(2.02039161e-06, dtype=float64)

import numpy as np
h = np.geomspace(1e-10, 1e-1,50)
dH = [(Hubble(76.+hp)-Hubble(76))/hp for hp in h]
jaxdH = dHubble(76.)

%matplotlib inline
import matplotlib.pyplot as plt
plt.figure(figsize=(8, 6))
plt.plot(h, dH, label='Numerical', linestyle='-', marker='o')  # Line plot for 'numerical'
plt.axhline(y=jaxdH, label='JAX', color='r', linestyle='--')   # Horizontal line for 'jax'

# Logarithmic scale for x-axis
plt.xscale('log')

# Axis labels and title
plt.xlabel('h (step size)')
plt.ylabel('dH (derivative)')
plt.title('Comparison of Numerical and JAX Derivatives')

# Thin grid
plt.grid(True, which='both', linestyle='--', linewidth=0.5)

# Legend
plt.legend()

# Display plot
plt.show()

On a redshift grid

from jax import jacrev, jacfwd
z = jnp.linspace(1., 20, 10)

def Hubble(H0):
    cosmo_params.update({'H0':H0})
    hz = classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)
    return hz

dHubble = jacrev(Hubble)

%timeit -n 100 dHubble(72.)

24.8 ms ± 1.37 ms per loop (mean ± std. dev. of 7 runs, 100 loops each)

dHubble = jacfwd(Hubble)

%timeit -n 100 dHubble(72.)

17.2 ms ± 1.09 ms per loop (mean ± std. dev. of 7 runs, 100 loops each)

Forward mode is faster.

> 1 dimension

At one redshift

z = 1.
def Hubble(H0,omega_cdm):
    cosmo_params.update({'H0':H0,
                         'omega_cdm':omega_cdm})
    hz = classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)
    return hz

Hubble(72,0.11833)

Array(0.00040971, dtype=float64)

from jax import jacfwd
# Get the derivative of Hubble with respect to both parameters
dHubble = jacfwd(Hubble,argnums=(0,1))

dHubble(76.,0.11933)

(Array(2.02039159e-06, dtype=float64), Array(0.00092981, dtype=float64))

On a redshift grid

z = jnp.linspace(1., 20, 10)

def Hubble(H0,omega_cdm):
    cosmo_params.update({'H0':H0,
                         'omega_cdm':omega_cdm})
    hz = classy_sz.get_hubble_at_z(z,params_values_dict = cosmo_params)
    return hz

Hubble(72,0.11833)

Array([0.00040971, 0.00106581, 0.00195863, 0.00302666, 0.00424306,
       0.00559103, 0.00705868, 0.00863741, 0.0103195 , 0.01209945],      dtype=float64)

dHubble = jacfwd(Hubble,argnums=(0,1))

dHubble(76.,0.11933)

(Array([2.02039159e-06, 7.88481298e-07, 4.29706169e-07, 2.77572060e-07,
        1.97199735e-07, 1.47912808e-07, 1.17819987e-07, 9.30194044e-08,
        7.54919311e-08, 5.92952867e-08], dtype=float64),
 Array([0.00092981, 0.00355171, 0.00678657, 0.01058068, 0.01486751,
        0.01960805, 0.0247732 , 0.03029529, 0.0361957 , 0.04240309],      dtype=float64))
