Intialize

%matplotlib inline
import matplotlib
import matplotlib.pyplot as plt
import numpy as np
from classy_sz import Class as Class_sz

cosmo_params = {
'omega_b': 0.02242,
'omega_cdm':  0.11933,
'H0': 67.66, # use H0 because this is what is used by the emulators and to avoid any ambiguity when comparing with camb.
'tau_reio': 0.0561,
'ln10^{10}A_s': 3.047,
'n_s': 0.9665
}

Compute \(\rho_c(z)\)

%%time
classy_sz = Class_sz()
classy_sz.set(cosmo_params)
classy_sz.set({
'output':' ',
'skip_background_and_thermo': 0,
'cosmo_model': 0,
})

CPU times: user 187 μs, sys: 1.24 ms, total: 1.43 ms
Wall time: 3.1 ms

True

%%time
classy_sz.compute_class_szfast()

CPU times: user 290 ms, sys: 48.5 ms, total: 338 ms
Wall time: 120 ms

classy_sz.get_rho_crit_at_z(0.)

277517901355.0651

Conversion to standard units

c_light = 2.997924581e8 # s
G = 6.674*1e-11 # m3 kg-1 s-2
solar = 1.98855*1e30 ## kg
mpc = 3.08567758149137*1e22 # m
gamma =  G/c_light**2*solar/mpc

conv_fac = 1./(1000.*mpc**3/solar)

classy_sz.get_rho_crit_at_z(0.)*conv_fac*classy_sz.h()**2 # g/m^3

8.598840023056267e-30

Plot \(\rho(z)\)

label_size = 15
title_size = 20
legend_size = 13
handle_length = 1.5
fig, (ax1) = plt.subplots(1,1,figsize=(18,5))

ax = ax1
ax.tick_params(axis = 'x',which='both',length=5,direction='in', pad=10)
ax.tick_params(axis = 'y',which='both',length=5,direction='in', pad=5)
ax.xaxis.set_ticks_position('both')
ax.yaxis.set_ticks_position('both')
plt.setp(ax.get_yticklabels(), rotation='horizontal', fontsize=label_size)
plt.setp(ax.get_xticklabels(), fontsize=label_size)
ax.grid( visible=True, which="both", alpha=0.2, linestyle='--')


z = np.linspace(0.,20,100)

ax.plot(z,np.vectorize(classy_sz.get_rho_crit_at_z)(z),ls='-',label='class_szfast')






ax.set_ylabel(r"$\rho_c(z)$",size=title_size)
ax.set_xlabel(r"$z$",size=title_size)
ax.set_xscale('linear')
ax.set_yscale('log')
ax.set_xlim(0,20)
ax.legend(fontsize=legend_size)

<matplotlib.legend.Legend at 0x3221aa600>

Compute with Jax

%matplotlib inline
import matplotlib
import matplotlib.pyplot as plt
from classy_sz import Class as Class_sz
import jax.numpy as jnp
from jax import jacfwd

%%time
cosmo_params = {
'omega_b': 0.02242,
'omega_cdm':  0.11933,
'H0': 67.66, # use H0 because this is what is used by the emulators.
'tau_reio': 0.0561,
'ln10^{10}A_s': 3.047,
'n_s': 0.9665,
}

# initialize computation
classy_sz = Class_sz()
classy_sz.set(cosmo_params)
classy_sz.set({
'output':' ',
'jax': 1,
})
classy_sz.compute_class_szfast()

CPU times: user 648 ms, sys: 212 ms, total: 860 ms
Wall time: 1.12 s

zp = 0.1
classy_sz.get_rho_crit_at_z(zp,params_values_dict=cosmo_params)

Array(3.06136466e+11, dtype=float64)

Omega_c = 0.26
z = jnp.linspace(0.1,20.,200)

def rhoc_allzs(Omega_c):
    omega_cdm = Omega_c*(cosmo_params['H0']/100.)**2
    cosmo_params.update({'omega_cdm':omega_cdm})
    rhoc = classy_sz.get_rho_crit_at_z(z,params_values_dict=cosmo_params)
    return rhoc

%%time
drhoc_allzs = jacfwd(rhoc_allzs,argnums=(0))

CPU times: user 37 μs, sys: 4 μs, total: 41 μs
Wall time: 53.2 μs

label_size = 15
title_size = 20
legend_size = 13
handle_length = 1.5
fig, (ax1) = plt.subplots(1,1,figsize=(18,5))

ax = ax1
ax.tick_params(axis = 'x',which='both',length=5,direction='in', pad=10)
ax.tick_params(axis = 'y',which='both',length=5,direction='in', pad=5)
ax.xaxis.set_ticks_position('both')
ax.yaxis.set_ticks_position('both')
plt.setp(ax.get_yticklabels(), rotation='horizontal', fontsize=label_size)
plt.setp(ax.get_xticklabels(), fontsize=label_size)
ax.grid( visible=True, which="both", alpha=0.2, linestyle='--')

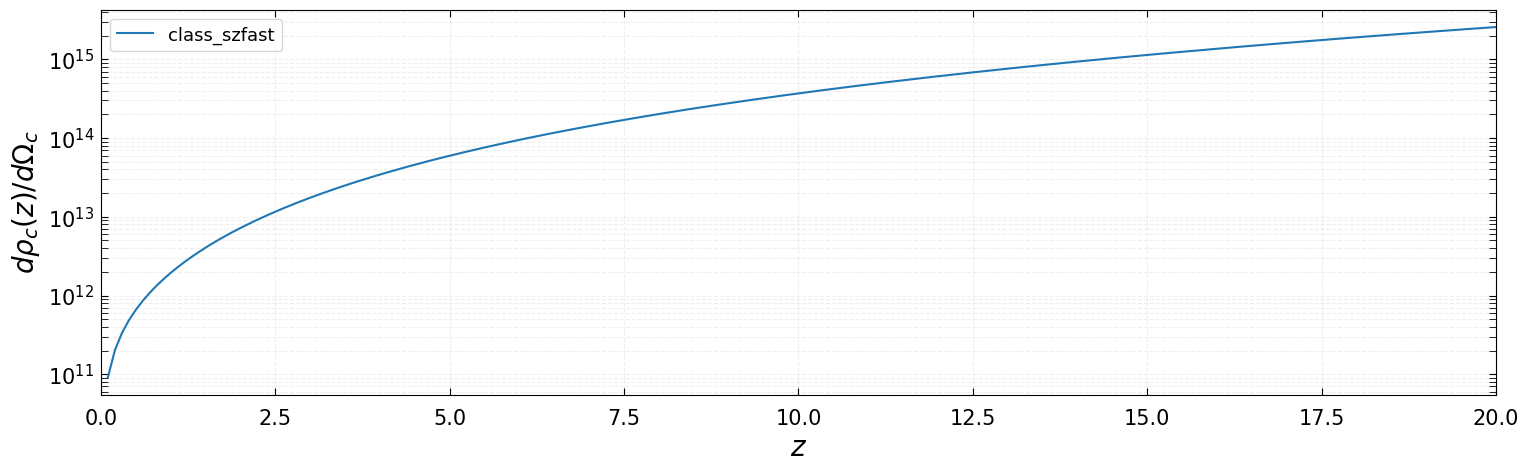

ax.plot(z,drhoc_allzs(Omega_c),ls='-',label='class_szfast')






ax.set_ylabel(r"$d\rho_c(z)/d\Omega_c$",size=title_size)
ax.set_xlabel(r"$z$",size=title_size)
ax.set_xscale('linear')
ax.set_yscale('log')
ax.set_xlim(0,20)
ax.legend(fontsize=legend_size)

<matplotlib.legend.Legend at 0x341667b90>
